Why UNIX for Data Science?

• You will almost inevitably need to set up your own server environment

• Understanding how permissions work will be crucial to you being able to effectively use it

• Setting up links here and there will give you a bit of a superpower unheard of on other systems

UNIX directory structure

• On the system level, the directory structure is implemented as a tree

• There is one more level of structure underneath.

inodes

• The basic data structure is called an inode, uniquely identified by an ID

inodes

• The basic data structure is called an inode, uniquely identified by an ID

• Each inode contains information about a specific file

inodes

• The basic data structure is called an inode, uniquely identified by an ID

• Each inode contains information about a specific file

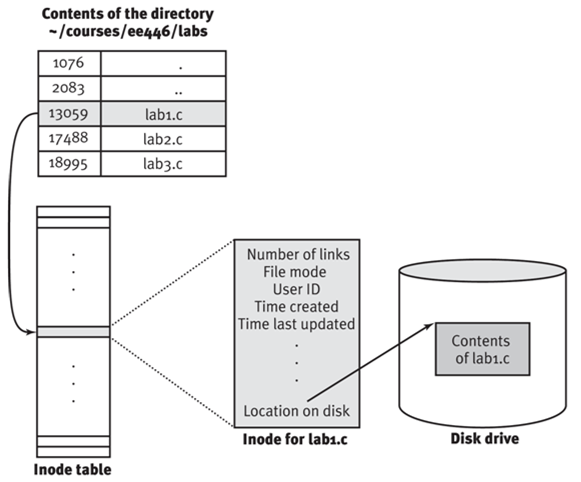

• A directory is actually a special file: it contains a list of filenames and pointers to thier inodes

Image from http://faculty.salina.k-state.edu/tim/unix_sg/advanced/links.html

File in UNIX systems

• name (and an optional extension, e.g. .txt)
• attributes (metadata)
  • owner (UID) and group (GID)
  • access rights for owner, group and others
  • time of last attribute change (ctime), modification (mtime) and access to content (atime)
• content

File in UNIX systems

• name (and an optional extension, e.g. .txt)
• attributes (metadata)
  • owner (UID) and group (GID)
  • access rights for owner, group and others
  • time of last attribute change (ctime), modification (mtime) and access to content (atime)
• content

File metadata

• Not shown by default in ls listing

• Part of the "long listing format" (i.e. via ls -l)

$ ls -l /labs/lab06_dist.sh
-rwxr-xr-x 1 mrshu mrshu 3402021 Oct 26 15:36 lab06_dist.sh

File metadata

• Not shown by default in ls listing

• Part of the "long listing format" (i.e. via ls -l)

$ ls -l /labs/lab06_dist.sh
-rwxr-xr-x 1 mrshu mrshu 3402021 Oct 26 15:36 lab06_dist.sh

• To do the same on a directory, add -d flag (ls lists directory contents by default)

$ ls -l /labs
total 20264
-rwxr-xr-x 1 root root 3389123 Sep 21 13:21 lab01_dist.sh
-rwxr-xr-x 1 root root 3428779 Sep 28 14:09 lab02_dist.sh
-rwxr-xr-x 1 root root 3644753 Oct  5 14:23 lab03_dist.sh
$ ls -l -d /labs
drwxr-xr-x 2 root root 4096 Oct 26 17:01 /labs/

File metadata: File Types

File types:

• -
  • "normal" file
• d
  • directory
• c / b
  • character / block device
• p
  • named pipe
• l
  • symbolic link
• s
  • socket

Image from https://test-www.ics.uci.edu/computing/linux/file-security.php

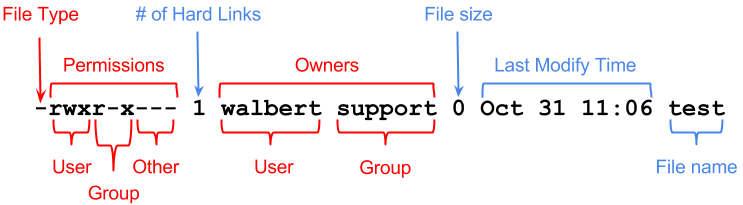

File metadata: Permissions

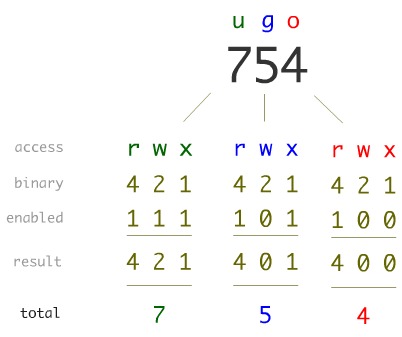

File metadata: Permissions II

$ chmod g+rx file.txt
$ chmod a-r file.txt
$ chmod o=rw file.txt

# (111 111 111) in binary
$ chmod 777 file.txt
# (111 100 101) in binary
$ chmod 745 file.txt

File metadata: Directory Permissions

Permissions work a bit differently on directories:

• read (r)

  • allow listing of contents

• write (w)

  • create, modify and remove files in the directory

• execute (x)

  • ability to go through the directory
  • in other words, to include it in the path

File metadata: Owner and Group

# Change the owner of file.txt to jane
$ chown jane file.txt
# Works on directories as well
$ chown jane ~/Downloads

# Change the group of file.txt to root
$ chgrp root file.txt

$ chown jane:users /home/jane

File metadata: Timestamps

• ls -l by default shows the mtime -- last modified time

• The other timestamps can be viewed by the stat utility

$ stat /tmp
  File: /tmp
  Size: 3800            Blocks: 0          IO Block: 4096   directory
Device: 23h/35d Inode: 21596       Links: 129
Access: (1777/drwxrwxrwt)  Uid: (    0/    root)   Gid: (    0/    root)
Context: system_u:object_r:tmp_t:s0
Access: 2020-10-30 13:48:18.249475358 +0100
Modify: 2020-11-02 11:05:48.417238277 +0100
Change: 2020-11-02 11:05:48.417238277 +0100
 Birth: -

File metadata: Timestamps II

$ touch newfile.txt
$ touch -a newfile.txt
# STAMP format: [[CC]YY]MMDDhhmm[.ss]
# Everything in [] is optional
#
# MM == 11
# DD == 02
# hh == 10
# mm == 10
$ touch -m -t 11021010 newfile.txt

Links as a concept

• Often times we'd like to have a file/directory with the same content available on various parts of the filesystem.

Links as a concept

• Often times we'd like to have a file/directory with the same content available on various parts of the filesystem.

• It makes little sense to copy the same contents multiple times over (what if it changes?)

Links as a concept

• Often times we'd like to have a file/directory with the same content available on various parts of the filesystem.

• It makes little sense to copy the same contents multiple times over (what if it changes?)

• The solution is called links

Image from https://www.computerhope.com/unix/uln.htm

Directory as a special file

• Notice how the "directory contents" file has entries for both itself (.) and its parent directory (..)

• Since it can contain arbitrary filenames which point to arbitrary inode IDs, this can be used for simple implementation of links

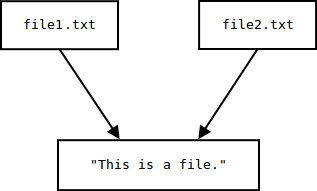

Hard link

$ echo "This is a file." > file1.txt
$ ls -l -i file1.txt
136158 -rw-rw-r-- 1 mrshu mrshu 16 Nov  2 11:20 file1.txt
# Create a hardlink called file2.txt from file1.txt
$ ln file1.txt file2.txt
# The hardlink count has increased
$ ls -l -i file2.txt
136158 -rw-rw-r-- 2 mrshu mrshu 16 Nov  2 11:20 file2.txt
$ cat file1.txt
This is a file.
$ cat file2.txt
This is a file.

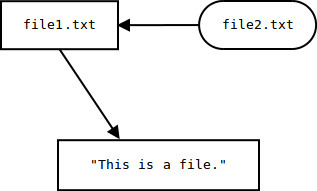

Symbolic link (symlink)

• A "standard shortcut"

  • A new "text" file gets created; its contents point to the path where the source file is located
  • The path is evaluated from the position of this new file in the filesystem

• When the source file gets removed, the symbolic link continues to live

• It is not counted among the hardlinks (e.g. in ls -l output)

• Can be created across the whole filesystem (not just one data device)

Images from https://www.computerhope.com/unix/uln.htm

Symbolic link (symlink)

$ echo "This is a file." > file1.txt
$ ls -l file1.txt
136158 -rw-rw-r-- 1 mrshu mrshu 16 Nov  2 11:44 file1.txt
# Create a symlink called file2.txt pointing to file1.txt
$ ln -s file1.txt file2.txt
# The hardlink count has not increased
$ ls -l -i file2.txt
136159 lrwxrwxrwx 1 mrshu mrshu 9 Nov  2 11:45 file2.txt -> file1.txt
$ ls -l -i file1.txt
136158 -rw-rw-r-- 1 mrshu mrshu 16 Nov  2 11:44 file1.txt
$ cat file1.txt
This is a file.
$ cat file2.txt
This is a file.
# Link to the parent directory
$ mkdir dir
$ cd dir
$ ln -s ../file1.txt file3.txt
$ ls -l -i file3.txt
393489 lrwxrwxrwx 1 mrshu mrshu 12 Nov  2 11:48 file3.txt -> ../file1.txt

file

A useful command for checking the file type (e.g. is it an image, video or a text file).

• file filename
  • -b simplified output
  • -i output as a mime type

$ file image.jpg
image.jpg: JPEG image data, JFIF standard 1.01, resolution (DPI), density 72x72,
segment length 16, progressive, precision 8, 317x191, components 3
$ file -bi image.jpg
image/jpeg; charset=binary
$ file index.html
index.html: HTML document, UTF-8 Unicode text, with very long lines
$ file -i index.html
index.html: text/html; charset=utf-8

iconv

Convert text form one character encoding to another

• iconv -f [encoding] -t [encoding] -o [outputfile] [inputfile]
  • -f [encoding]: convert encoding from this charset
  • -t [encoding]: convert encoding to this charset
  • -o [outputfile]: save output to this file (stdout by default)

$ file -bi file_iso.txt
text/plain; charset=iso-8859-1
$ iconv -f iso-8859-1 -t utf-8 -o file_utf8.txt file_iso.txt
$ file -bi file_utf8.txt
text/plain; charset=utf-8
